Powerplant (engine) Variations

Started by Arro · Sep 12, 2008 · 10postsSMF 2010–26

ArroSep 12, 2008, 11:52 pm · #1

CA18ET = Used throughout the world

CA18DET = Used in Japan on '88 models, some parts of Europe (Gran Prix edition)

CA20E = Used in North America, some parts of Europe, and the Australian market

FJ20E = Used in Japan on Gazelle RS-X*

FJ20ET = Used in Japan on Silvia RS-X*

VG30E = Used in North America on some '87 and '88 models (Sports Edition)

*Cars imported into Australian "grey" market.

David BSep 13, 2008, 12:00 am · #2

the FJ looks very nice. can you explain where it was made,

i figure the part of the world the FJ was made had to be towards performance... my god its such a great base to start off of..

imagine.. in the 80's!

a little 180 HP TURBO, with fuel injection.... and rear disk brakes? and IRS also ...... talking lady like the full models!! fucking ridiculous... i can never beleive how are car is so forgotten... when it could blow away todays POS wannabes.

oh yea did i even mention RWD

David BSep 20, 2008, 6:09 pm · #3

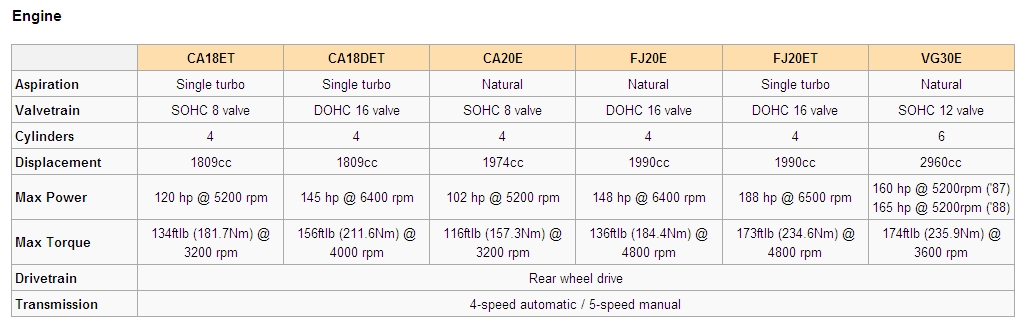

im confused by the fact that the diagram you have FJ20ET.

would int be a FJ20DE, or DET since its DOHC?

Garrett76ztSep 20, 2008, 10:50 pm · #4

No, this was before Nissan was using the "D" designation for dual cam motors.

200SXXEnotchbck86Nov 9, 2008, 3:07 pm · #5

Might explain why we never got the FJ, The Corvette of the early 80's might have had only around 200 hp. Think they would have let an Import have top dog honors. My 83 z28 was rated at like 155, and the H.O. motor was rated at 190. The Mustang GT didn't hit 200 hp intill 87. I think we didn't get the FJ because of politics. It probably ran cleaner then those other motors too.

Dangit, need to look at the dates, at least its only a month or 2 old.

DraconisNov 9, 2008, 3:11 pm · #6

Arro, you should find a diagram or make one like that for all the current engines that are swapped with... It could help with the constant, "which is better' threads.

We have those above, why not add: CA18DET, SR20DET red top, SR20DET black top, RB20DET, RB25DET, RB26DETT, VG30DE, VG30ET, VG30DETT

jeffwins24Nov 9, 2008, 3:31 pm · #7

ARRO you forgot the FJ24 thats makes 243hp at the crank :o

ryan206Dec 19, 2008, 8:05 pm · #8

200SXXEnotchbck86Might explain why we never got the FJ, The Corvette of the early 80's might have had only around 200 hp. Think they would have let an Import have top dog honors. My 83 z28 was rated at like 155, and the H.O. motor was rated at 190. The Mustang GT didn't hit 200 hp intill 87. I think we didn't get the FJ because of politics. It probably ran cleaner then those other motors too.

Dangit, need to look at the dates, at least its only a month or 2 old.

1985 Corvettes made 230HP/330TQ

An FJ20ET would hold its own against a vette of the same year.

ArroDec 20, 2008, 1:23 pm · #9

DraconisArro, you should find a diagram or make one like that for all the current engines that are swapped with... It could help with the constant, "which is better' threads.

We have those above, why not add: CA18DET, SR20DET red top, SR20DET black top, RB20DET, RB25DET, RB26DETT, VG30DE, VG30ET, VG30DETT

Nah, that's why we have tech sections for the popular swaps, and a general swap setction for the not-so-common ones. I put that info here and a handful of people will want to argue what is or is not a completed and verified swap. Plus *anything* can be swapped with enough money.

jeffwins24ARRO you forgot the FJ24 thats makes 243hp at the crank :o

The FJ24 didn't come in the S12, it came in the "240RS" (not to be confused with the "240SX"), which was Nissan's limited-production Group B World Rally Championship car. I'm pretty sure you had to "be somebody" to land one of those back in the day, and I'm not even sure any of them are left.

The other reason has to do with the way the Japanese feel about the western market. But yes, the importation laws also have a lot to do with it, and what is allowed in by the DOT is based on their evaluation of the impact it would have on the domestic market.

GForce S12Jan 31, 2009, 2:36 pm · #10

CA18ET = Used throughout the world

CA18DET = Used in Japan on '88 models, some parts of Europe (Gran Prix edition)

CA20E = Used in North America, some parts of Europe, and the Australian market

FJ20E = Used in Japan on Gazelle RS-X*

FJ20ET = Used in Japan on Silvia RS-X*

VG30E = Used in North America on some '87 and '88 models (Sports Edition)

Hey Arro,

Maybe it would be good to mention that the FJ20E was also used in the european S12s.
Especially in the german room (Austria included) a lot of FJ powered ones can be found.

Also the "standard" GP came with a FJ.
Only for the swiss market they did the CA engine foe emission reasons (catalytic converter) where the FJ was never sold because of the lack of cat.
